Product Summary
The XC2S50-5FGG256I is a Field-Programmable Gate Array. It gives users high performance, abundant logic resources, and a rich feature set, all at an exceptionally low price.
Parametrics
Absolute maximum ratings: (1)Supply voltage relative to GND:–0.5V to 3.0V; (2)Supply voltage relative to GND:–0.5V to 4.0V; (3)Input reference voltage:–0.5V to 3.6V; (4)Storage temperature (ambient):–65℃ to +150℃; (5)Junction temperature:+125℃.
Features
Features: (1)Densities as high as 5,292 logic cells with up to 200,000 system gates; (2)Streamlined features based on Virtex FPGA architecture; (3)Unlimited reprogrammability; (4)Very low cost; (5)Cost-effective 0.18 micron process; (6)Fully PCI compliant; (7)Low-power segmented routing architecture; (8)Full readback ability for verification/observability; (9)Dedicated carry logic for high-speed arithmetic; (10)Efficient multiplier support; (11)Cascade chain for wide-input functions; (12)Abundant registers/latches with enable, set, reset; (13)Four dedicated DLLs for advanced clock control; (14)Four primary low-skew global clock distribution nets; (15)EEE 1149.1 compatible boundary scan logic; (16)Pb-free package options; (17)Low-cost packages available in all densities; (18)Family footprint compatibility in common packages; (19)16 high-performance interface standards; (20)Hot swap Compact PCI friendly; (21)Zero hold time simplifies system timing.

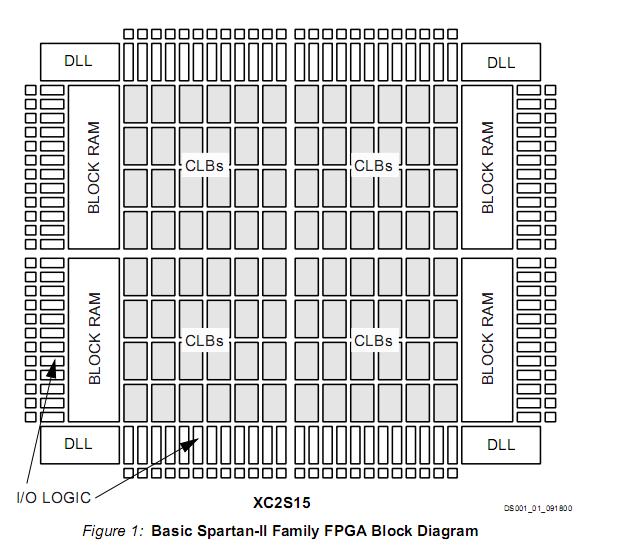

Diagrams
 |
