Product Summary
The MC13783VK5 is a highly integrated power management and audio component dedicated to handset and portable applications covering GSM, GPRS, EDGE, and UMTS standards. It implements high-performance audio functions suited to high-end applications such as smartphones and UMTS handsets.
Parametrics
Absolute maximum ratings: (1)Charger Input Voltage: -0.3 to +20 V; (2)USB Input Voltage if Common to Charger: -0.3 to +20 V; (3)USB Input Voltage if Separate from Charger: -0.3 to +5.50 V; (4)Battery Voltage: -0.3 to +4.65 V; (5)Coincell Voltage: -0.3 to +4.65 V; (6)Ambient Operating Temperature Range: -30 to +85 ℃; (7)Operating Junction Temperature Range: -30 to +125 ℃; (8)Storage Temperature Range: -65 to +150 ℃; (9)ESD Protection Human Body Model: 2.0 kV min.
Features
Features: (1)Full power management and audio functionality in one module optimizes system size; (2)High level of integration reduces the power management and audio system bill of materials; (3)Versatile solution offers large possibilities of flexibility through simple programming (64 registers of 24-bit data); (4)Implemented DVS saves significant battery resources in every mode (compatibility with a large number of processors); (5)Dual channel voice ADC improves intelligibility.

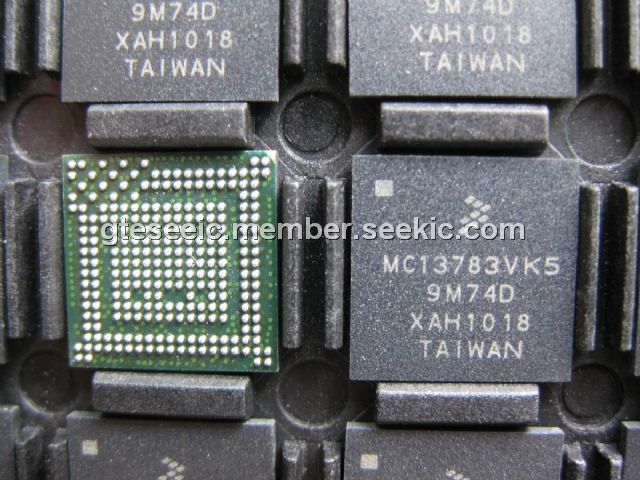

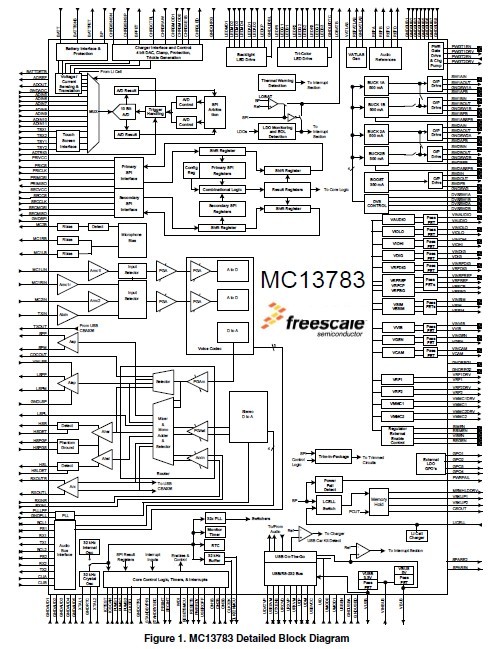

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC13783VK5 |
Freescale Semiconductor |
Battery Chargers ATLAS 3G PWRMNGMNT 5 |
Data Sheet |
|
|
||||||||
|
MC13783VK5R2 |
Freescale Semiconductor |
Battery Chargers ATLAS 3G PWRMNGMNT 5 |
Data Sheet |
|
|
||||||||
