Product Summary
The AM29LV128MH-103REI-1 is a 128 Mbit, 3.0 volt single power supply flash memory device. It has a 16-bit wide data bus that can also function as an 8-bit wide data bus. It can be programmed either in the host system or in standard EPROM programmers.
Parametrics
Absolute maximum ratings: (1)Storage Temperature: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –65℃ to +125℃; (3)Voltage with Respect to Ground: VCC: –0.5 V to +4.0 V; VIO: –0.5 V to +4.0 V; (4)Output Short Circuit Current: 200 mA.
Features
Features: (1)Program Suspend & Resume: read other sectors before programming operation is completed; (2)Erase Suspend & Resume: read/program other sectors before an erase operation is completed; (3)Data# polling & toggle bits provide status; (4)Unlock Bypass Program command reduces overall multiple-word or byte programming time; (5)CFI (Common Flash Interface) compliant: allows host system to identify and accommodate multiple flash devices.

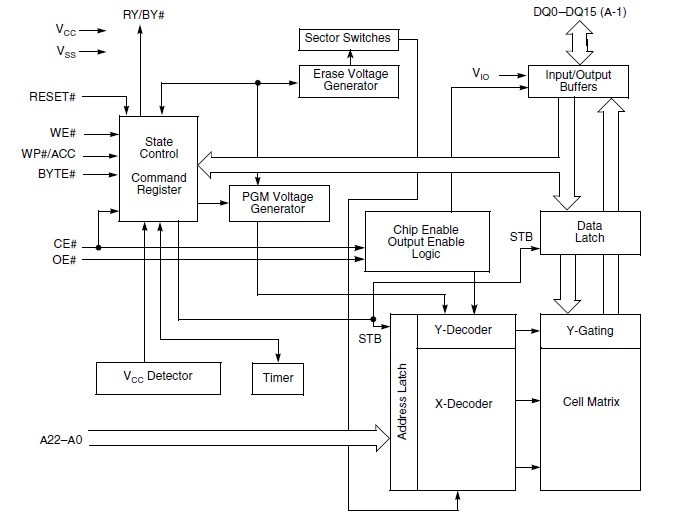

Diagrams
 |
