Product Summary

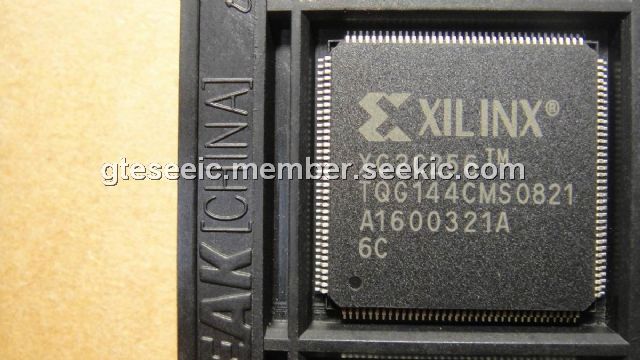

The XC2C256TQG144CMS is a CoolRunner-II CPLD. It is designed for both high performance and low power applications.
Parametrics
Absolute maximum ratings: (1)Supply voltage relative to ground:–0.5V to 2.0V; (2)Supply voltage for output drivers:–0.5V to 4.0V; (3)JTAG input voltage limits:–0.5V to 4.0V; (4)JTAG input supply voltage:–0.5V to 4.0V; (5)Input voltage relative to ground:–0.5V to 4.0V; (6)Voltage applied to 3-state output:–0.5V to 4.0V; (7)Storage Temperature (ambient):–65℃ to +150℃; (8)Junction Temperature:+150℃.
Features
Features: (1)Open-drain output option for Wired-OR and LED drive; (2)Optional bus-hold, 3-state or weak pull-up on selected I/O pins; (3)Optional configurable grounds on unused I/Os; (4)Mixed I/O voltages compatible with 1.5V, 1.8V, 2.5V, and 3.3V logic levels; (5)Multiple global clocks with phase selection per macrocell; (6)Multiple global output enables; (7)Global set/reset; (8)Optional Schmitt-trigger input (per pin); (9)Unsurpassed low power management; (10)Multi-voltage I/O operation: 1.5V to 3.3V ; (11)As fast as 5.7 ns pin-to-pin delays; (12)As low as 13 μA quiescent current .
Diagrams
 |
 XC2C128 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
 |
XC2C128-6CPG132C |
|
IC CR-II CPLD 128MCELL 132CSBGA |
Data Sheet |
|
|
||||||||||
|
XC2C128-6TQG144C |
|
IC CR-II CPLD 128MCELL 144-TQFP |
Data Sheet |
|
|
||||||||||
|
XC2C128-6VQG100C |
|
IC CR-II CPLD 128MCELL 100-VQFP |
Data Sheet |
|
|
||||||||||
|
XC2C128-7CPG132C |
|
IC CR-II CPLD 128MCELL 132-BGA |
Data Sheet |
|
|
||||||||||
|
XC2C128-7CPG132I |
|
IC CR-II CPLD 128MCELL 132CSBGA |
Data Sheet |
|
|
||||||||||
