Product Summary

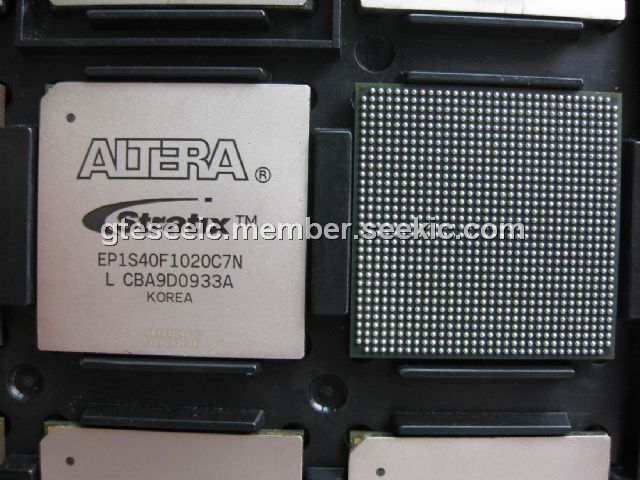

The EP1S40F1020C7N is a FPGA. It is based on a 1.5-V, 0.13μm, all-layer copper SRAM process, with densities of up to 79,040 logic elements (LEs) and up to 7.5 Mbits of RAM.
Parametrics
Absolute maximum ratings: (1)Supply voltage With respect to ground:–0.5V to 2.4V or–0.5V to 4.6V; (2)DC input voltage:–0.5V to 4.6 V; (3)DC output current, per pin:–25mA to 40 mA; (4)Storage temperature No bias:–65℃ to 150℃; (5)Junction temperature BGA packages under bias:135℃.
Features
Features: (1)LEs:41,250 ; (2)M512 RAM blocks (32 × 18 bits):384 ; (3)M4K RAM blocks (128 × 36 bits):183 ; (4)M-RAM blocks (4K × 144 bits):4 ; (5)Total RAM bits:3,423,744 ; (6)DSP blocks:14 ; (7)Embedded multipliers:112 ; (8)PLLs:12 ; (9)Maximum user I/O pins:822 .

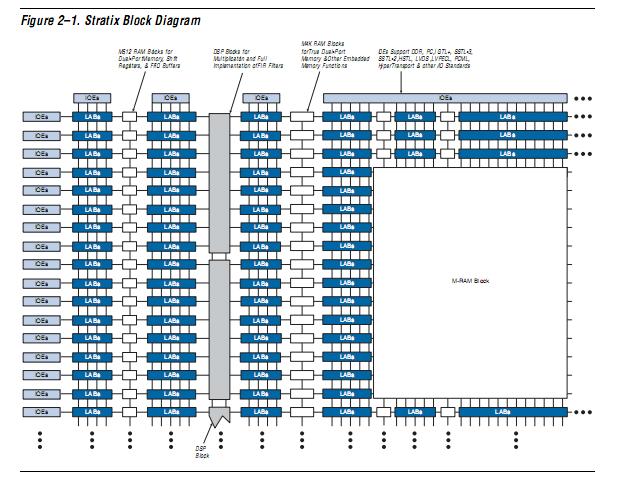

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EP1S40F1020C7N |
|
IC STRATIX FPGA 40K LE 1020-FBGA |
Data Sheet |
|
|
||||||
