MPC8270ZUUPEA

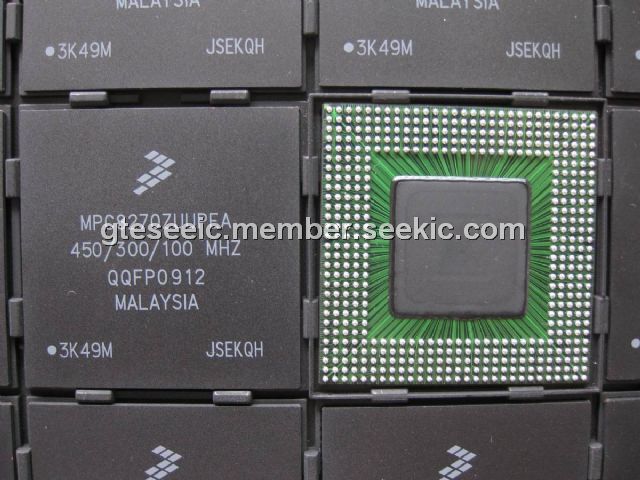

MPC8270ZUUPEA, ZU package, Separate power supply

Rated 5 Rating 5 | reviews | Write a review

Price:: US $90.00~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $90.00~100.00

PartNumber:: MPC8270ZUUPEA

Brand:: Freescale Semiconductor, Inc - Freescale | Pack: BGA | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Cathy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-05-12

From Other Seller

Part Number:MPC8270ZUUPEA
US $90.00 - 100.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MPC8270ZUUPEA is available in three packages-the standard ZU package.

Parametrics

Absolute maximum ratings: (1)Core supply voltage: -0.3 to 2.25 V; (2)PLL supply voltage: -0.3 to 2.25 V; (3)I/O supply voltage: -0.3 to 4.0 V; (4)Input voltage: GND(-0.3) to 3.6 V; (5)Junction temperature: 120 ℃; (6)Storage temperature range: (-55) - (+150) ℃.

Features

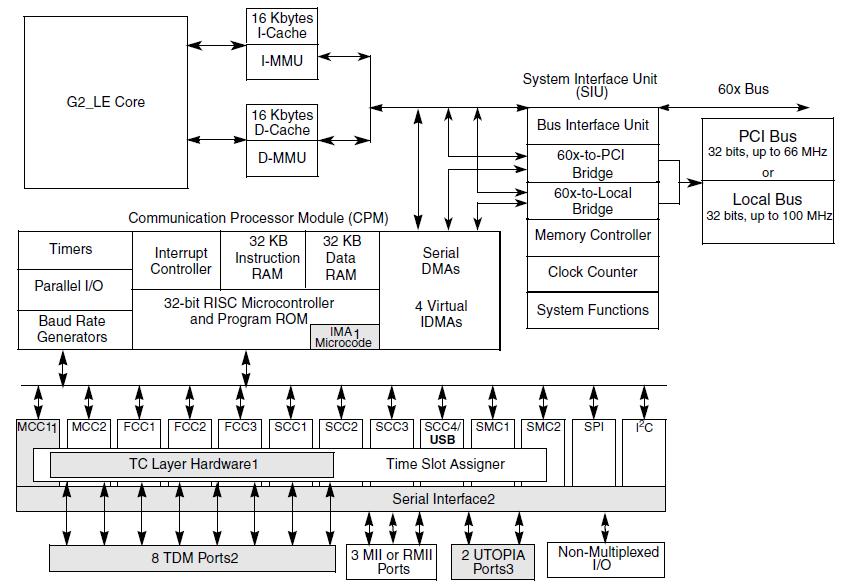

Features: (1)Dual-issue integer (G2_LE) core; (2)Separate power supply for internal logic and for I/O; (3)Separate PLLs for G2_LE core and for the CPM; (4)64-bit data and 32-bit address 60x bus; (5)32-bit data and 18-bit address local bus; (6)60x-to-PCI bridge; (7)PCI bridge; (8)System interface unit (SIU); (9)12-bank memory controller; (10)CPU core can be disabled and the device can be used in slave mode to an external core.
