Product Summary

The M30624FGPGP#U5C is a single-chip microcomputer. It is suitable for control of various OA, communication, and industrial equipment which requires high-speed arithmetic/logic operations. Its package is QFP100.

Parametrics

Absolute maximum ratings: (1)VCC1, VCC2, supply voltage: -0.3 to 6.5V when VCC1=AVCC; (2)AVCC, analog supply voltage: -0.3 to 6.5V when VCC1=AVCC; (3)Pd, power dissipation: 300mW when -40℃<Topr≤85℃; 200mW when -40℃<Topr≤125℃; (4)Tstg, storage temperature: -65 to 150℃.

Features

Features: (1)operate using sophisticated instructions featuring a high level of instruction efficiency; (2)1M bytes of address spac; (3)capable of executing instructions at high speed; (4)contains a multiplier and DMAC.

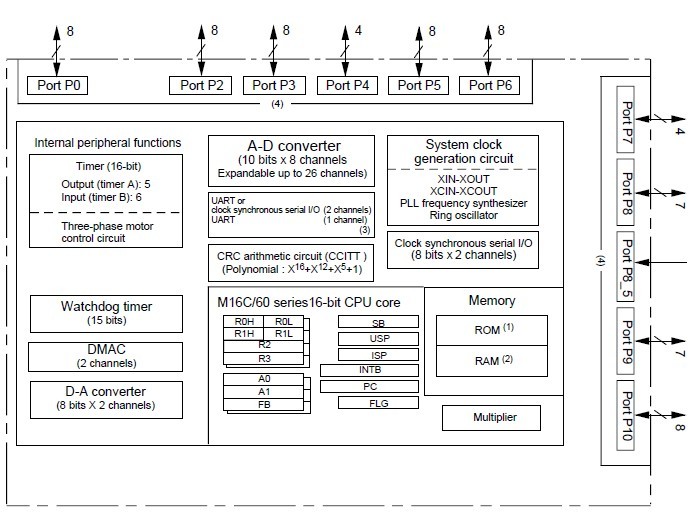

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

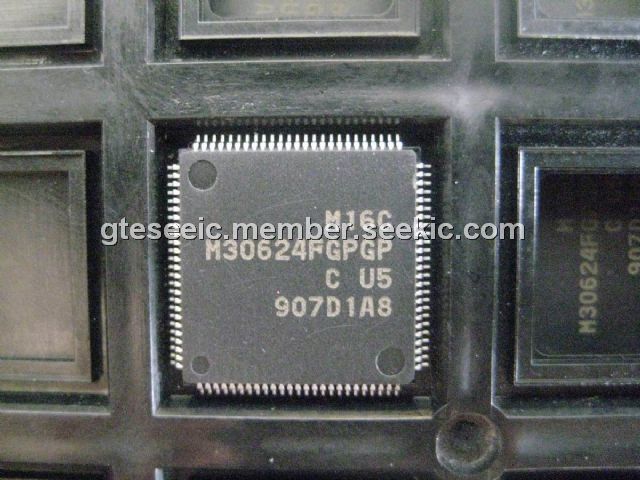

M30624FGPGP#U5C
M30624FGPGP#U5C

IC M16C MCU FLASH 256K 100LQFP
Data Sheet
0-1: $12.00
1-10: $11.10
10-100: $9.45
100-250: $8.70
250-500: $8.25
500-1000: $7.80
1000-2500: $7.56
2500-5000: $7.35
5000-10000: $7.20
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
M3060C
M3060C
Other

Data Sheet
Negotiable
M3060C-E3/4W
M3060C-E3/4W
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 60 Volt 30 Amp Dual 160 Amp IFSM
Data Sheet
0-500: $0.55
500-1000: $0.43
1000-2000: $0.39
M30620ECFS
M30620ECFS
Renesas Technology America
M16C FAMILY EMULATION CHIP
Data Sheet
Negotiable
M30620FCAFP#D3
M30620FCAFP#D3

IC M16C MCU FLASH 128K 100LQFP
Data Sheet
0-1: $24.16
M30620FCAFP#D5
M30620FCAFP#D5

IC M16C MCU FLASH 128K 100LQFP
Data Sheet
0-1: $13.00
M30620FCAFP#U3
M30620FCAFP#U3

IC M16C MCU FLASH 100QFP
Data Sheet
0-1: $24.16
