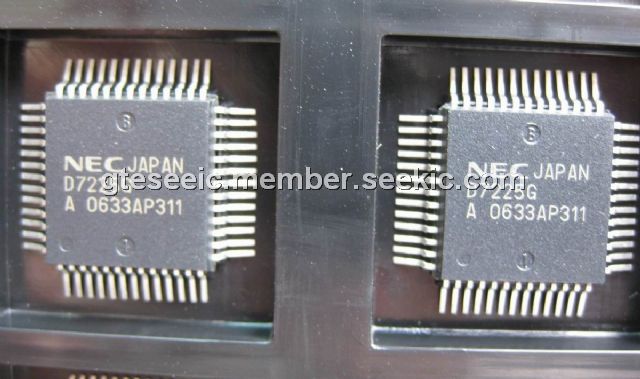

Product Summary

The D7225G is a software-programmable LCD (Liquid Crystal Display)controller/driver. It can be serially interfaced with the CPU in a microcomputer and can directly drive 2, 3, or 4-time division LCD. It contains a segment decoder which can generate specific segment patterns. In addition, it can be used to control on/off (blinking) operation of a display.

Parametrics

Absolute maximum ratings: (1)Power supply voltage, VDD: -0.3 to +7.0 V; (2)Input voltage, VI: -0.3 to VDD +0.3 V; (3)Output voltage, VO: -0.3 to VDD +0.3 V; (4)Operating ambient temperature, TA: -10 to +70 ℃; (5)Storage temperature, Tstg: -65 to +150 ℃.

Features

Features: (1)Can directly drive LCD; (2)Blinking operation; (3)Multi-chip configuration possible; (4)8-bit serials interface; (5)CMOS; (6)Single power supply.

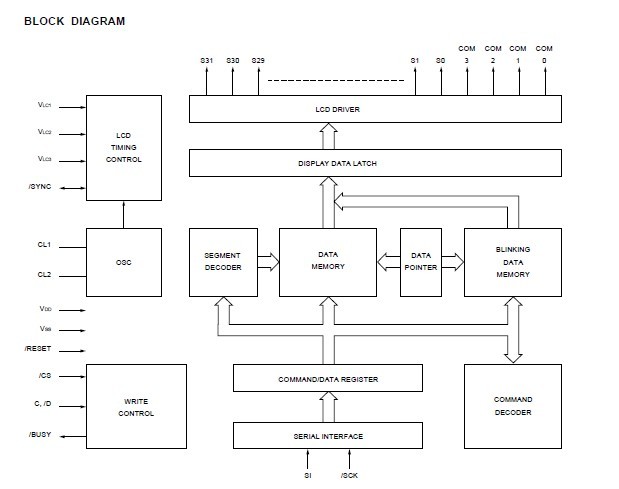

Diagrams
